Κάμερα Οπισθοπορείας Αδιάβροχη IP69K Στρογγυλή AHD Universal 170° ACV 772000-6708

Κάμερα Οπισθοπορείας Αδιάβροχη IP69K Στρογγυλή AHD Universal 170° ACV 772000-6708
Χαρακτηριστικά:

• only suitable for AHD monitors
• AHD universal rear view camera
• Design: square
• Mounting type: substructure
• With small design / IP69K / Viewing angle diagonal 210°
• Construction: plastic
• Color: black
• Extras: small design / IP69K
• Sensor type: 1/2.8" AHD
• Image system: NTSC color
• Lens: mm / F
• Lux: 0.03
• Resolution: TV lines
• Lens angle: diagonal 210°
• Viewing angle: horizontal 170° vertical 120° +5°
• Dust and water resistant: IP69K
• Connection: 4 pin acv system plug(m) Ø5.2mm
• Operating voltage: +3V DC
• Supply voltage: +12V / +24V DC > with voltage converter
• Current consumption: 100mA
• Operating temperature range: -20°C - 70°C
• Storage temperature: -40°C - 80°C
• Dimensions: L / W / H / 25.7mm / 28mm / 23.5mm

Note:
- acv cameras are suitable for continuous operation
- Before installation > check the viewing angle and camera alignment at the installation location using a test monitor
- Camera operating voltage: +3V
- Camera supply voltage: +12V / +24V
- Connection without the +3V voltage converter included in delivery will damage the camera
- Connection: red: +12V / +24V switched, load-stable, black: body ground direct/GND
- Cinch(m) yellow: video

Λεπτομέρειες Προϊόντος
Θέση: Πίσω

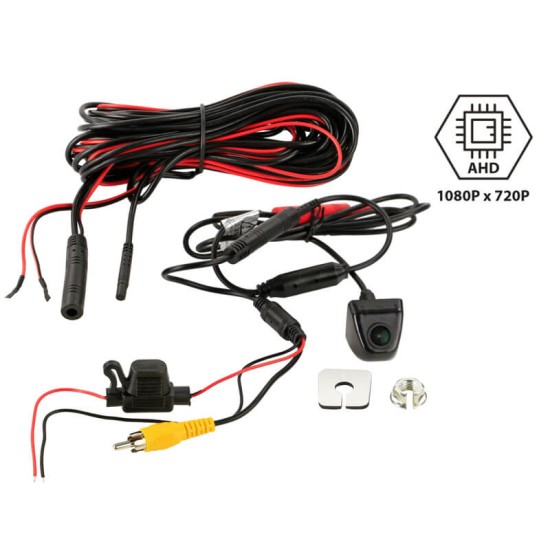

Περιλαμβάνει: Κιτ Καλωδίωσης
Περιλαμβάνει: Ταινία Διπλής Όψεως
Πλήθος Τεμαχίων: 1 Τεμάχιο
Χρώμα: Μαύρο
